Custom Stained Glass Window Film for a Guitar Museum Exhibit

A commercial-services firm designing a guitar museum needed a three-metre circular stained glass piece for a glass-backed display wall. Handcrafted glass meant cost, fragile shipping and an opening date that could not move. FancyFix proposed printed stained glass film instead — the same backlit colour, cut to the exact circle, far simpler to install. The piece is now a central visual in the museum, and the approach is repeatable for other rollouts.

Background

A client from the commercial-services industry — specializing in advertising design, musical-instrument accessories, and organizing cultural exchange activities — undertook a creative project for a guitar museum's interior design. As part of the museum's visual concept, they needed a large, 3-meter-diameter circular art piece featuring guitar-themed designs, to be installed on a display wall backed by glass.

For this kind of cultural and commercial space, the visual language needed to strongly communicate music heritage and craftsmanship. The concept was inspired by classic guitar stained-glass art often seen in historical concert halls and cultural institutions, adapted for a modern museum setting. Initially, the client considered commissioning a custom-made glass artwork. However, that approach posed significant challenges in cost, production time, and installation logistics. From a large-project procurement perspective, traditional handcrafted stained glass often involves complex international sourcing, fragile transportation, and high installation risk — factors that can significantly increase total project cost and timeline.

The client's challenges

• Budget constraints. Custom glass artwork with stained effects is expensive and labor-intensive.
• Tight timeline. The museum had a fixed opening schedule, requiring a solution with a much shorter lead time.
• Visual and durability requirements. The client wanted the piece to mimic the look of stained glass, with vivid color effects that interact with lighting, while being durable enough for long-term indoor display.
• Design precision. The artwork needed detailed guitar imagery that integrated seamlessly into the museum's spatial design. As a public exhibition space, it also required color stability, safety, and ease of maintenance under continuous visitor exposure and lighting.

FancyFix solutions

Introducing the concept of stained glass window film. Once we understood the client's goals and constraints, FancyFix proposed an alternative: using custom stained-glass film to achieve the desired effect. This immediately sparked the client's interest, as they had not previously considered window films to simulate stained glass. The solution was designed to replicate the layered depth, color segmentation, and light interaction of classic stained glass — without the structural and logistical limitations of real glass panels.



Value delivered:

• Cost efficiency. Replacing actual stained glass with high-quality custom stained-glass window film saved substantially on material and fabrication costs, and reduced hidden costs related to packaging, breakage risk, and specialized installation labor.
• Time saving. The lead time for producing and installing the film was significantly shorter than crafting and delivering actual glass, helping the client stay on schedule — well suited to large-scale cultural projects, pop-up exhibitions, and permanent museum installations where timing is critical.
• Custom aesthetic. FancyFix developed a unique, tailored background texture based on the guitar motif the client provided, ensuring the design matched their artistic vision and clearly reflected the essence of guitar stained glass.
• Enhanced visual impact. The final product mimicked the depth, color saturation, and transparency of traditional stained glass; when sunlight passed through, it created a colored glow — exactly what the client envisioned.

Technical execution. To execute the circular 3-meter-diameter design, FancyFix digitally processed and divided the film into three precise segments, allowing easier handling and reduced on-site installation risk while maintaining the integrity of the pattern. High-resolution printing and UV-resistant coatings ensured the film would stay vibrant and fade-resistant over time. Installation went directly onto the glass-backed display wall inside the museum; as a non-invasive solution, the film preserved the original glass structure — an important consideration for cultural venues that require reversible installations.

What the film actually was, and why it shipped as three segments

The museum piece is printed stained glass film: a PVC face film on a release liner, 0.3–0.5 mm thick measured with the liner on and 0.28–0.38 mm with it removed. The liner is normally PET, and can be art paper instead when a job calls for it. Those are FancyFix stock figures for this line, and a buyer who needs a different build can have the parameters produced to their own requirement.

A three-metre circle cannot be produced in one piece, because the widest web this line runs is 120 cm. Splitting the artwork into three segments was therefore a production constraint rather than a handling preference — and it is the first thing to check on any oversized single-image job, because it decides where the seams fall and so where they can be hidden in the design.

Printed stained glass film — stock figures
Thickness, liner on / liner off	0.3–0.5 mm / 0.28–0.38 mm
Standard shipping widths	45 cm, 60 cm, 90 cm, 120 cm
Standard shipping lengths	90 cm, 180 cm, 200 cm (no maximum length)
Material	PVC face film, PET release liner
Installation	Static cling

Static cling is why the museum's glass was left untouched. Static cling film holds by surface contact and carries no adhesive, so nothing was bonded to the display wall and a segment can be lifted off without residue — which is the condition cultural venues normally set when they ask for a reversible installation.

The results

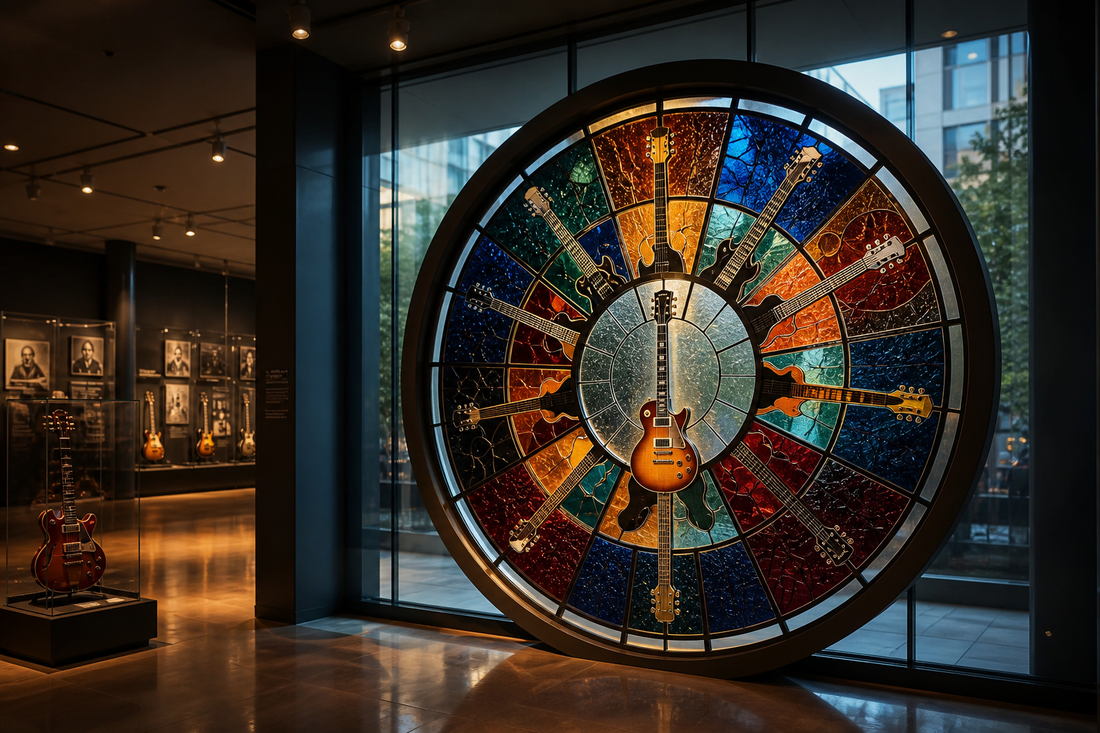

The client was delighted with the outcome. The custom stained-glass window film met their artistic and functional needs and exceeded expectations in ease of installation, affordability, and visual impact. The solution proved scalable and repeatable for future museum or commercial rollout. Today, the circular guitar-themed piece stands as a central visual highlight in the museum, and has become a reference example for how guitar stained-glass concepts can be realized using modern window film.

Why a one-off piece did not need a production run

Printed stained glass film needs no plate, so one roll is enough to produce. That is what made a single three-metre artwork viable against a fixed opening date: the guitar design went straight to print, with none of the tooling step that a volume printing process has to clear first.

Two different processes sit behind designs that look alike on the wall. Printed stained glass film is made by a print process, which runs from 1 roll upward — that is what makes it usable for small batches and for testing several patterns at once, and the same process also runs at volume. Colour-printed static cling film is made by a printing process, which suits large production runs. Once a design has proven itself, the same artwork can move from the print process to the volume printing process and the unit cost drops sharply.

Minimum order quantities apply only on that second path, and they follow the product type rather than the design. Static glass film starts at 400 m for embossed, 800–1,000 m for printed, and 3,000–20,000 m for the eco-material builds; adhesive solar film starts at 3,000 m. A one-off exhibition piece sits below all of those figures, which is the point of the print route.

Project rolls and retail rolls are packed differently, and a museum job takes the project build. A project roll ships on a 3-inch core with optional end plugs, shrink wrap, a label, a kraft carton and a pallet; a retail roll goes on an inner core into an inner box, then an outer carton and a pallet. Compliance documentation and test reports are prepared for your market and your product line, and because which documents a programme needs is decided by the buyer's market and channel, the set is built per order rather than published as a fixed list.

Conclusion

• Creative solutions drive client value. Introducing the concept of stained-glass window film opened a more efficient path to the desired artistic effect.
• Customization is key. Tailoring the design to the space and the brand identity ensured a one-of-a-kind installation.
• Art meets practicality. Custom stained-glass window film let the client combine artistry with cost and time efficiency — proving that innovation often lies in material choices.
